PLMD::isdb::MetainferenceBase Class Referenceabstract


This is the abstract base class to use for implementing new ISDB Metainference actions, within it there is information as to how to go about implementing a new Metainference action. More...

#include <MetainferenceBase.h>

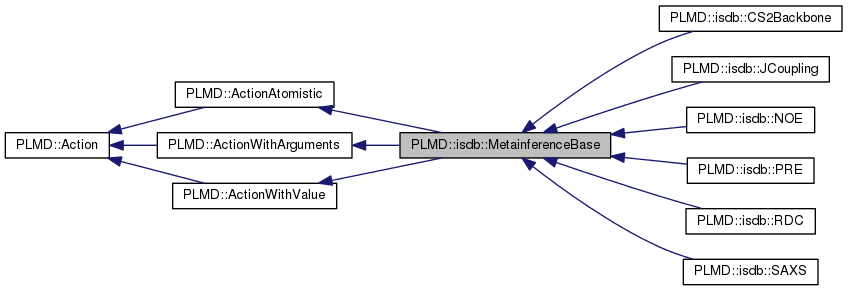

Inheritance diagram for PLMD::isdb::MetainferenceBase:
Inheritance graph
[legend]

Public Types

typedef std::vector< Action * > Dependencies


Public Member Functions

 MetainferenceBase (const ActionOptions &)

 ~MetainferenceBase ()

void Initialise (const unsigned input)

void Selector ()

unsigned getNarg ()

void setNarg (const unsigned input)

void setParameters (const std::vector< double > &input)

void setParameter (const double input)

void setCalcData (const unsigned index, const double datum)

void setCalcData (const std::vector< double > &data)

bool getDoScore ()

unsigned getWstride ()

double getScore ()

void setScore (const double score)

void setDerivatives ()

double getMetaDer (const unsigned index)

void writeStatus ()

void turnOnDerivatives ()
 Activate the calculation of derivatives. More...

unsigned getNumberOfDerivatives ()

void lockRequests ()

void unlockRequests ()

void calculateNumericalDerivatives (ActionWithValue *a)
 N.B. More...

void apply ()
 Apply an Action. More...

void setArgDerivatives (Value *v, const double &d)

void setAtomsDerivatives (Value *v, const unsigned i, const Vector &d)

void setBoxDerivatives (Value *v, const Tensor &d)

void requestAtoms (const std::vector< AtomNumber > &a)
 Request an array of atoms. More...

const VectorgetPosition (int) const
 Get position of i-th atom (access by relative index) More...

const VectorgetPosition (AtomNumber) const
 Get position of i-th atom (access by absolute AtomNumber). More...

VectormodifyPosition (AtomNumber)
 Get modifiable position of i-th atom (access by absolute AtomNumber). More...

unsigned getTotAtoms () const
 Get total number of atoms, including virtual ones. More...

VectormodifyGlobalForce (AtomNumber)
 Get modifiable force of i-th atom (access by absolute AtomNumber). More...

TensormodifyGlobalVirial ()
 Get modifiable virial Should be used by action that need to modify the stored virial. More...

PbcmodifyGlobalPbc ()
 Get modifiable PBC Should be used by action that need to modify the stored box. More...

const TensorgetBox () const
 Get box shape. More...

const std::vector< Vector > & getPositions () const
 Get the array of all positions. More...

const double & getEnergy () const
 Get energy. More...

double getMass (int i) const
 Get mass of i-th atom. More...

double getCharge (int i) const
 Get charge of i-th atom. More...

std::vector< Vector > & modifyForces ()
 Get a reference to forces array. More...

TensormodifyVirial ()
 Get a reference to virial array. More...

double & modifyForceOnEnergy ()
 Get a reference to force on energy. More...

unsigned getNumberOfAtoms () const
 Get number of available atoms. More...

Vector pbcDistance (const Vector &, const Vector &) const
 Compute the pbc distance between two positions. More...

void pbcApply (std::vector< Vector > &dlist, unsigned max_index=0) const
 Applies PBCs to a seriens of positions or distances. More...

virtual const std::vector< AtomNumber > & getAbsoluteIndexes () const
 Get the vector of absolute indexes. More...

AtomNumber getAbsoluteIndex (int i) const
 Get the absolute index of an atom. More...

void parseAtomList (const std::string &key, std::vector< AtomNumber > &t)
 Parse a list of atoms without a numbered keyword. More...

void parseAtomList (const std::string &key, const int num, std::vector< AtomNumber > &t)
 Parse an list of atom with a numbred keyword. More...

void interpretAtomList (std::vector< std::string > &strings, std::vector< AtomNumber > &t)
 Convert a set of read in strings into an atom list (this is used in parseAtomList) More...

void changeBox (const Tensor &newbox)
 Change the box shape. More...

const PbcgetPbc () const
 Get reference to Pbc. More...

void setForcesOnAtoms (const std::vector< double > &forcesToApply, unsigned ind=0)
 Add the forces to the atoms. More...

void doNotRetrieve ()
 Skip atom retrieval - use with care. More...

void doNotForce ()
 Skip atom forces - use with care. More...

void makeWhole ()
 Make atoms whole, assuming they are in the proper order. More...

void allowToAccessGlobalForces ()
 Allow calls to modifyGlobalForce() More...

void updateUniqueLocal ()
 updates local unique atoms More...

void clearOutputForces ()

void calculateAtomicNumericalDerivatives (ActionWithValue *a, const unsigned &startnum)
 Numerical derivative routine to use when using Actions that inherit from BOTH ActionWithArguments and ActionAtomistic. More...

virtual void retrieveAtoms ()

void applyForces ()

const std::set< AtomNumber > & getUnique () const

const std::set< AtomNumber > & getUniqueLocal () const

void readAtomsFromPDB (const PDB &pdb)
 Read in an input file containing atom positions and calculate the action for the atomic configuration therin. More...

bool checkUpdate () const
 Check if action should be updated. More...

void addDependency (Action *)
 Specify that this Action depends on another one. More...

void clearDependencies ()
 Clear the dependence list for this Action. More...

long int getStep () const
 Return the present timestep. More...

double getTime () const
 Return the present time. More...

double getTimeStep () const
 Return the timestep. More...

bool getRestart () const
 Return true if we are doing a restart. More...

bool getCPT () const
 Return true if we are doing at a checkpoint step. More...

std::string getKeyword (const std::string &key)
 Just read one of the keywords and return the whole thing as a string. More...

template<class T >
void parse (const std::string &key, T &t)
 Parse one keyword as generic type. More...

template<class T >
bool parseNumbered (const std::string &key, const int no, T &t)
 Parse one numbered keyword as generic type. More...

template<class T >
void parseVector (const std::string &key, std::vector< T > &t)
 Parse one keyword as std::vector. More...

template<class T >
bool parseNumberedVector (const std::string &key, const int no, std::vector< T > &t)
 Parse a vector with a number. More...

void parseFlag (const std::string &key, bool &t)
 Parse one keyword as boolean flag. More...

void error (const std::string &msg) const
 Crash calculation and print documentation. More...

void warning (const std::string &msg)
 Issue a warning. More...

void exit (int c=0)
 Exit with error code c. More...

void checkRead ()
 Check if Action was properly read. More...

virtual void prepare ()
 Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation. More...

virtual void calculate ()=0
 Calculate an Action. More...

virtual void beforeUpdate ()
 Before Update. More...

virtual void update ()
 Update. More...

virtual void runFinalJobs ()
 RunFinalJobs This method is called once at the very end of the calculation. More...

void fflush ()
 Tell to the Action to flush open files. More...

virtual std::string getDocumentation () const

const std::string & getLabel () const
 Returns the label. More...

const std::string & getName () const
 Returns the name. More...

virtual void activate ()
 Set action to active. More...

virtual void setOption (const std::string &s)

virtual void clearOptions ()

virtual void deactivate ()
 Set action to inactive. More...

bool isActive () const
 Check if action is active. More...

bool isOptionOn (const std::string &s) const
 Check if an option is on. More...

const DependenciesgetDependencies () const
 Return dependencies. More...

virtual bool checkNumericalDerivatives () const
 Check if numerical derivatives should be performed. More...

virtual bool checkNeedsGradients () const
 Check if the action needs gradient. More...

FILE * fopen (const char *path, const char *mode)
 Opens a file. More...

int fclose (FILE *fp)
 Closes a file opened with Action::fclose(). More...

void calculateFromPDB (const PDB &)
 Calculate the action given a pdb file as input. More...

bool getExchangeStep () const
 Check if we are on an exchange step. More...

std::string cite (const std::string &s)
 Cite a paper see PlumedMain::cite. More...

double getProjection (unsigned i, unsigned j) const
 Get the scalar product between the gradients of two variables. More...

double getArgument (const unsigned n) const
 Returns the value of an argument. More...

ValuegetPntrToArgument (const unsigned n)
 Return a pointer to specific argument. More...

virtual unsigned getNumberOfArguments () const
 Returns the number of arguments. More...

double difference (int, double, double) const
 Takes the difference taking into account pbc for arg i. More...

double bringBackInPbc (int i, double d1) const
 Takes one value and brings it back into the pbc of argument i. More...

void parseArgumentList (const std::string &key, std::vector< Value *> &args)
 Parse a list of arguments. More...

bool parseArgumentList (const std::string &key, int i, std::vector< Value *> &args)
 Parse a numbered list of arguments. More...

void requestArguments (const std::vector< Value *> &arg)
 Setup the dependencies. More...

void addForcesOnArguments (const std::vector< double > &forces)
 Add forces to arguments (used in apply) More...

const std::vector< Value * > & getArguments () const
 Returns an array of pointers to the arguments. More...

void interpretArgumentList (const std::vector< std::string > &c, std::vector< Value *> &arg)
 Convert a list of argument names into a list of pointers to the values. More...

void addValue ()
 Add a value with the name label. More...

void addValueWithDerivatives ()
 Add a value with the name label that has derivatives. More...

void setNotPeriodic ()
 Set your default value to have no periodicity. More...

void setPeriodic (const std::string &min, const std::string &max)
 Set the value to be periodic with a particular domain. More...

void setValue (Value *, double)
 Set the value. More...

void addComponent (const std::string &name)
 Add a value with a name like label.name. More...

void addComponentWithDerivatives (const std::string &name)
 Add a value with a name like label.name that has derivatives. More...

void componentIsNotPeriodic (const std::string &name)
 Set your value component to have no periodicity. More...

void componentIsPeriodic (const std::string &name, const std::string &min, const std::string &max)
 Set the value to be periodic with a particular domain. More...

virtual bool doNotCalculateDerivatives () const
 Are we not calculating derivatives. More...

double getOutputQuantity (const unsigned j) const
 Get the value of one of the components of the PLMD::Action. More...

double getOutputQuantity (const std::string &name) const
 Get the value with a specific name (N.B. if there is no such value this returns zero) More...

bool exists (const std::string &name) const
 Check if a value with a particular name is present. More...

ValuecopyOutput (const std::string &name) const
 Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

ValuecopyOutput (const unsigned &n) const
 Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

std::string getComponentsList () const
 get a string that contains all the available components More...

std::vector< std::string > getComponentsVector () const
 get a vector that contains the label for all the components More...

int getNumberOfComponents () const
 Returns the number of values defined. More...

void clearInputForces ()
 Clear the forces on the values. More...

virtual void clearDerivatives ()
 Clear the derivatives of values wrt parameters. More...

void setGradientsIfNeeded ()
 Calculate the gradients and store them for all the values (need for projections) More...

bool checkNumericalDerivatives () const
 Check if numerical derivatives should be used. More...

void useNumericalDerivatives ()
 This forces the class to use numerical derivatives. More...

virtual void checkFieldsAllowed ()


Static Public Member Functions

static void registerKeywords (Keywords &keys)

static void noAnalyticalDerivatives (Keywords &keys)
 Insist that numerical derivatives should always be used for an action and make this fact appear in the manual. More...

static void componentsAreNotOptional (Keywords &keys)
 Puts a message into the manual that the components always output. More...

static void useCustomisableComponents (Keywords &keys)
 The components in the action will depend on the user. More...


Public Attributes

PlumedMainplumed
 Reference to main plumed object. More...

Loglog
 Reference to the log stream. More...

std::set< FILE * > files

Communicatorcomm

Communicatormulti_sim_comm

const Keywordskeywords


Protected Member Functions

void expandArgKeywordInPDB (PDB &pdb)
 This changes the arg keyword in the pdb file. More...

ValuegetPntrToValue ()
 Get a pointer to the default value. More...

void setValue (const double &d)
 Set the default value (the one without name) More...

ValuegetPntrToComponent (int i)
 Return a pointer to the component by index. More...

ValuegetPntrToComponent (const std::string &name)
 Return a pointer to the value by name. More...


Protected Attributes

Atomsatoms


Private Types

enum  {
  GAUSS, MGAUSS, OUTLIERS, MOUTLIERS,
  GENERIC
}

enum  { LIKE_GAUSS, LIKE_LOGN }

enum  { SC_GAUSS, SC_FLAT }


Private Member Functions

double getEnergyMIGEN (const std::vector< double > &mean, const std::vector< double > &ftilde, const std::vector< double > &sigma, const double scale, const double offset)

double getEnergySP (const std::vector< double > &mean, const std::vector< double > &sigma, const double scale, const double offset)

double getEnergySPE (const std::vector< double > &mean, const std::vector< double > &sigma, const double scale, const double offset)

double getEnergyGJ (const std::vector< double > &mean, const std::vector< double > &sigma, const double scale, const double offset)

double getEnergyGJE (const std::vector< double > &mean, const std::vector< double > &sigma, const double scale, const double offset)

void setMetaDer (const unsigned index, const double der)

double getEnergyForceSP (const std::vector< double > &mean, const std::vector< double > &dmean_x, const std::vector< double > &dmean_b)

double getEnergyForceSPE (const std::vector< double > &mean, const std::vector< double > &dmean_x, const std::vector< double > &dmean_b)

double getEnergyForceGJ (const std::vector< double > &mean, const std::vector< double > &dmean_x, const std::vector< double > &dmean_b)

double getEnergyForceGJE (const std::vector< double > &mean, const std::vector< double > &dmean_x, const std::vector< double > &dmean_b)

double getEnergyForceMIGEN (const std::vector< double > &mean, const std::vector< double > &dmean_x, const std::vector< double > &dmean_b)

double getCalcData (const unsigned index)

void get_weights (double &fact, double &var_fact)

void replica_averaging (const double fact, std::vector< double > &mean, std::vector< double > &dmean_b)

void get_sigma_mean (const double fact, const double var_fact, const std::vector< double > &mean)

void doMonteCarlo (const std::vector< double > &mean)


Private Attributes

std::vector< double > forces

std::vector< double > forcesToApply

bool doscore_

unsigned write_stride_

unsigned narg

std::vector< double > parameters

std::vector< double > metader_

std::vector< double > calc_data_

unsigned noise_type_

unsigned gen_likelihood_

bool doscale_

unsigned scale_prior_

double scale_

double scale_mu_

double scale_min_

double scale_max_

double Dscale_

unsigned offset_prior_

bool dooffset_

double offset_

double offset_mu_

double offset_min_

double offset_max_

double Doffset_

std::vector< double > sigma_

std::vector< double > sigma_min_

std::vector< double > sigma_max_

std::vector< double > Dsigma_

std::vector< double > sigma_mean2_

std::vector< double > ftilde_

double Dftilde_

double kbt_

std::vector< Randomrandom

unsigned MCsteps_

unsigned MCstride_

long unsigned MCaccept_

long unsigned MCacceptScale_

long unsigned MCacceptFT_

long unsigned MCtrial_

unsigned MCchunksize_

ValuevalueScore

ValuevalueScale

ValuevalueOffset

ValuevalueAccept

ValuevalueAcceptScale

ValuevalueAcceptFT

std::vector< Value * > valueSigma

std::vector< Value * > valueSigmaMean

std::vector< Value * > valueFtilde

std::string status_file_name_

OFile sfile_

bool firstTime

std::vector< bool > firstTimeW

bool master

bool do_reweight_

unsigned do_optsigmamean_

unsigned nrep_

unsigned replica_

unsigned nsel_

std::string selector_

unsigned iselect

std::vector< std::vector< std::vector< double > > > sigma_mean2_last_

unsigned optsigmamean_stride_

double decay_w_

std::vector< std::vector< double > > average_weights_


Detailed Description


This is the abstract base class to use for implementing new ISDB Metainference actions, within it there is information as to how to go about implementing a new Metainference action.

Member Typedef Documentation

◆ Dependencies

typedef std::vector<Action*> PLMD::Action::Dependencies
inherited

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
private
Enumerator
GAUSS
MGAUSS
OUTLIERS
MOUTLIERS
GENERIC

◆ anonymous enum

anonymous enum
private
Enumerator
LIKE_GAUSS
LIKE_LOGN

◆ anonymous enum

anonymous enum
private
Enumerator
SC_GAUSS
SC_FLAT

Constructor & Destructor Documentation

◆ MetainferenceBase()

PLMD::isdb::MetainferenceBase::MetainferenceBase ( const ActionOptions ao)
explicit

◆ ~MetainferenceBase()

PLMD::isdb::MetainferenceBase::~MetainferenceBase ( )

Member Function Documentation

◆ activate()

void PLMD::Action::activate ( )
virtualinherited

Set action to active.

◆ addComponent()

void PLMD::ActionWithValue::addComponent ( const std::string &  name)
inherited

Add a value with a name like label.name.

◆ addComponentWithDerivatives()

void PLMD::ActionWithValue::addComponentWithDerivatives ( const std::string &  name)
inherited

Add a value with a name like label.name that has derivatives.

◆ addDependency()

void PLMD::Action::addDependency ( Action action)
inherited

Specify that this Action depends on another one.

◆ addForcesOnArguments()

void PLMD::ActionWithArguments::addForcesOnArguments ( const std::vector< double > &  forces)
inherited

Add forces to arguments (used in apply)

◆ addValue()

void PLMD::ActionWithValue::addValue ( )
inherited

Add a value with the name label.

◆ addValueWithDerivatives()

void PLMD::ActionWithValue::addValueWithDerivatives ( )
inherited

Add a value with the name label that has derivatives.

◆ allowToAccessGlobalForces()

void PLMD::ActionAtomistic::allowToAccessGlobalForces ( )
inlineinherited

Allow calls to modifyGlobalForce()

◆ apply()

void PLMD::isdb::MetainferenceBase::apply ( )
inlinevirtual

Apply an Action.

This method is called one time per step. The set of all Actions is applied in backward order.

Implements PLMD::Action.

◆ applyForces()

void PLMD::ActionAtomistic::applyForces ( )
inherited

◆ beforeUpdate()

virtual void PLMD::Action::beforeUpdate ( )
inlinevirtualinherited

Before Update.

This is a special method that is called just before the update() method. It can be used by actions that want to do something irrespectively of the fact that update() is active or not. In other words, this is always called, even when action is not active.

Reimplemented in PLMD::generic::UpdateIf.

◆ bringBackInPbc()

double PLMD::ActionWithArguments::bringBackInPbc ( int  i,
double  d1
) const
inlineinherited

Takes one value and brings it back into the pbc of argument i.

◆ calculate()

virtual void PLMD::Action::calculate ( )
pure virtualinherited

Calculate an Action.

This method is called one or more times per step. The set of all Actions is calculated in forward order.

Implemented in PLMD::isdb::CS2Backbone, PLMD::bias::MetaD, PLMD::ves::VesLinearExpansion, PLMD::bias::PBMetaD, PLMD::isdb::Metainference, PLMD::function::Matheval, PLMD::function::FuncSumHills, PLMD::isdb::EMMI, PLMD::mapping::PCAVars, PLMD::ves::Optimizer, PLMD::isdb::RDC, PLMD::eds::EDS, PLMD::ves::BasisFunctions, PLMD::ves::TargetDistribution, PLMD::generic::FitToTemplate, PLMD::bias::MaxEnt, PLMD::multicolvar::MultiColvarBase, PLMD::generic::WrapAround, PLMD::isdb::Rescale, PLMD::generic::Include, PLMD::function::FuncPathMSD, PLMD::generic::DumpAtoms, PLMD::colvar::Dimer, PLMD::bias::ExtendedLagrangian, PLMD::generic::Group, PLMD::colvar::ContactMap, PLMD::colvar::Distance, PLMD::generic::EffectiveEnergyDrift, PLMD::bias::MovingRestraint, PLMD::colvar::ERMSD, PLMD::analysis::Analysis, PLMD::isdb::SAXS, PLMD::generic::WholeMolecules, PLMD::colvar::DRMSD, PLMD::function::Target, PLMD::isdb::JCoupling, PLMD::generic::DumpMassCharge, PLMD::adjmat::Sprint, PLMD::bias::External, PLMD::colvar::Torsion, PLMD::analysis::Average, PLMD::colvar::EEFSolv, PLMD::generic::ResetCell, PLMD::mapping::AdaptivePath, PLMD::colvar::Gyration, PLMD::multicolvar::CenterOfMultiColvar, PLMD::bias::ABMD, PLMD::colvar::Angle, PLMD::isdb::FretEfficiency, PLMD::multicolvar::DistanceFromContour, PLMD::ves::OutputFesBias, PLMD::colvar::PathMSDBase, PLMD::generic::UpdateIf, PLMD::function::Combine, PLMD::isdb::PRE, PLMD::ves::OutputBasisFunctions, PLMD::generic::Print, PLMD::function::LocalEnsemble, PLMD::ves::OutputTargetDistribution, PLMD::adjmat::OutputCluster, PLMD::vatom::Center, PLMD::vatom::FixedAtom, PLMD::bias::BiasValue, PLMD::generic::Read, PLMD::isdb::NOE, PLMD::generic::RandomExchanges, PLMD::colvar::Puckering, PLMD::function::Piecewise, PLMD::multicolvar::DumpMultiColvar, PLMD::adjmat::ClusterDistribution, PLMD::secondarystructure::SecondaryStructureRMSD, PLMD::bias::LWalls, PLMD::isdb::Select, PLMD::vatom::COM, PLMD::bias::UWalls, PLMD::colvar::Position, PLMD::adjmat::ClusterDiameter, PLMD::analysis::Committor, PLMD::adjmat::ClusterSize, PLMD::colvar::Constant, PLMD::bias::Restraint, PLMD::generic::Flush, PLMD::isdb::Selector, PLMD::adjmat::ClusterProperties, PLMD::function::Ensemble, PLMD::colvar::Energy, PLMD::multicolvar::BridgedMultiColvarFunction, PLMD::function::Stats, PLMD::colvar::Dipole, PLMD::function::Sort, PLMD::generic::DumpDerivatives, PLMD::generic::DumpForces, PLMD::generic::EndPlumed, PLMD::generic::Debug, PLMD::colvar::Template, PLMD::generic::DumpProjections, PLMD::manyrestraints::ManyRestraintsBase, PLMD::vatom::Ghost, PLMD::colvar::Cell, PLMD::adjmat::DumpGraph, PLMD::colvar::ColvarFake, PLMD::colvar::Volume, PLMD::generic::Time, PLMD::adjmat::ClusteringBase, PLMD::gridtools::ActionWithGrid, PLMD::colvar::MultiRMSD, PLMD::colvar::RMSD, PLMD::colvar::PCARMSD, PLMD::colvar::CoordinationBase, PLMD::bias::ReweightBase, PLMD::ActionSetup, PLMD::gridtools::GridPrintingBase, and PLMD::mapping::PathBase.

◆ calculateAtomicNumericalDerivatives()

void PLMD::ActionAtomistic::calculateAtomicNumericalDerivatives ( ActionWithValue a,
const unsigned &  startnum
)
inherited

Numerical derivative routine to use when using Actions that inherit from BOTH ActionWithArguments and ActionAtomistic.

◆ calculateFromPDB()

void PLMD::Action::calculateFromPDB ( const PDB pdb)
inherited

Calculate the action given a pdb file as input.

This is used to initialize things like distance from a point in CV map space given a pdb as an input file

◆ calculateNumericalDerivatives()

void PLMD::isdb::MetainferenceBase::calculateNumericalDerivatives ( ActionWithValue a)
inlinevirtual

N.B.

only pass an ActionWithValue to this routine if you know exactly what you are doing. The default will be correct for the vast majority of cases

Reimplemented from PLMD::ActionAtomistic.

◆ changeBox()

void PLMD::ActionAtomistic::changeBox ( const Tensor newbox)
inherited

Change the box shape.

◆ checkFieldsAllowed()

virtual void PLMD::ActionWithValue::checkFieldsAllowed ( )
inlinevirtualinherited

Reimplemented in PLMD::colvar::ContactMap.

◆ checkNeedsGradients()

virtual bool PLMD::Action::checkNeedsGradients ( ) const
inlinevirtualinherited

Check if the action needs gradient.

Reimplemented in PLMD::bias::MetaD, PLMD::bias::PBMetaD, and PLMD::generic::DumpProjections.

◆ checkNumericalDerivatives() [1/2]

bool PLMD::ActionWithValue::checkNumericalDerivatives ( ) const
inlinevirtualinherited

Check if numerical derivatives should be used.

Reimplemented from PLMD::Action.

◆ checkNumericalDerivatives() [2/2]

virtual bool PLMD::Action::checkNumericalDerivatives ( ) const
inlinevirtualinherited

Check if numerical derivatives should be performed.

Reimplemented in PLMD::ActionWithValue.

◆ checkRead()

void PLMD::Action::checkRead ( )
inherited

Check if Action was properly read.

This checks if Action::line is empty. It must be called after a final Action has been initialized

◆ checkUpdate()

bool PLMD::Action::checkUpdate ( ) const
inherited

Check if action should be updated.

◆ cite()

std::string PLMD::Action::cite ( const std::string &  s)
inherited

Cite a paper see PlumedMain::cite.

◆ clearDependencies()

void PLMD::Action::clearDependencies ( )
inherited

Clear the dependence list for this Action.

◆ clearDerivatives()

void PLMD::ActionWithValue::clearDerivatives ( )
virtualinherited

Clear the derivatives of values wrt parameters.

Reimplemented in PLMD::multicolvar::BridgedMultiColvarFunction, and PLMD::manyrestraints::ManyRestraintsBase.

◆ clearInputForces()

void PLMD::ActionWithValue::clearInputForces ( )
inherited

Clear the forces on the values.

◆ clearOptions()

void PLMD::Action::clearOptions ( )
virtualinherited

◆ clearOutputForces()

void PLMD::ActionAtomistic::clearOutputForces ( )
inherited

◆ componentIsNotPeriodic()

void PLMD::ActionWithValue::componentIsNotPeriodic ( const std::string &  name)
inherited

Set your value component to have no periodicity.

◆ componentIsPeriodic()

void PLMD::ActionWithValue::componentIsPeriodic ( const std::string &  name,
const std::string &  min,
const std::string &  max
)
inherited

Set the value to be periodic with a particular domain.

◆ componentsAreNotOptional()

void PLMD::ActionWithValue::componentsAreNotOptional ( Keywords keys)
staticinherited

Puts a message into the manual that the components always output.

◆ copyOutput() [1/2]

Value * PLMD::ActionWithValue::copyOutput ( const std::string &  name) const
inherited

Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ copyOutput() [2/2]

Value * PLMD::ActionWithValue::copyOutput ( const unsigned &  n) const
inherited

Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ deactivate()

void PLMD::Action::deactivate ( )
inlinevirtualinherited

Set action to inactive.

◆ difference()

double PLMD::ActionWithArguments::difference ( int  i,
double  d1,
double  d2
) const
inlineinherited

Takes the difference taking into account pbc for arg i.

◆ doMonteCarlo()

void PLMD::isdb::MetainferenceBase::doMonteCarlo ( const std::vector< double > &  mean)
private

◆ doNotCalculateDerivatives()

bool PLMD::ActionWithValue::doNotCalculateDerivatives ( ) const
inlinevirtualinherited

Are we not calculating derivatives.

Reimplemented in PLMD::multicolvar::MultiColvarBase.

◆ doNotForce()

void PLMD::ActionAtomistic::doNotForce ( )
inlineinherited

Skip atom forces - use with care.

If this function is called during initialization, then forces are not going to be propagated. Can be used for optimization.

◆ doNotRetrieve()

void PLMD::ActionAtomistic::doNotRetrieve ( )
inlineinherited

Skip atom retrieval - use with care.

If this function is called during initialization, then atoms are not going to be retrieved. Can be used for optimization. Notice that calling getPosition(int) in an Action where DoNotRetrieve() was called might lead to undefined behavior.

◆ error()

void PLMD::Action::error ( const std::string &  msg) const
inherited

Crash calculation and print documentation.

◆ exists()

bool PLMD::ActionWithValue::exists ( const std::string &  name) const
inherited

Check if a value with a particular name is present.

This is only used in PLMD::ActionWithArguments. You should not use it when manipulating components.

◆ exit()

void PLMD::Action::exit ( int  c = 0)
inherited

Exit with error code c.

◆ expandArgKeywordInPDB()

void PLMD::ActionWithArguments::expandArgKeywordInPDB ( PDB pdb)
protectedinherited

This changes the arg keyword in the pdb file.

◆ fclose()

int PLMD::Action::fclose ( FILE *  fp)
inherited

Closes a file opened with Action::fclose().

◆ fflush()

void PLMD::Action::fflush ( )
inherited

Tell to the Action to flush open files.

◆ fopen()

FILE * PLMD::Action::fopen ( const char *  path,
const char *  mode
)
inherited

Opens a file.

This is similar to plain fopen, but with some extra functionality.

  • When opened for writing, processors other than the one with rank 0 just open /dev/null
  • PlumedMain::fopen is used, so that other tricks may appear (see PlumedMain::fopen)

◆ get_sigma_mean()

void PLMD::isdb::MetainferenceBase::get_sigma_mean ( const double  fact,
const double  var_fact,
const std::vector< double > &  mean
)
private

◆ get_weights()

void PLMD::isdb::MetainferenceBase::get_weights ( double &  fact,
double &  var_fact
)
private

◆ getAbsoluteIndex()

AtomNumber PLMD::ActionAtomistic::getAbsoluteIndex ( int  i) const
inlineinherited

Get the absolute index of an atom.

◆ getAbsoluteIndexes()

const std::vector< AtomNumber > & PLMD::ActionAtomistic::getAbsoluteIndexes ( ) const
inlinevirtualinherited

Get the vector of absolute indexes.

Reimplemented in PLMD::multicolvar::BridgedMultiColvarFunction.

◆ getArgument()

double PLMD::ActionWithArguments::getArgument ( const unsigned  n) const
inlineinherited

Returns the value of an argument.

◆ getArguments()

const std::vector< Value * > & PLMD::ActionWithArguments::getArguments ( ) const
inlineinherited

Returns an array of pointers to the arguments.

◆ getBox()

const Tensor & PLMD::ActionAtomistic::getBox ( ) const
inlineinherited

Get box shape.

◆ getCalcData()

double PLMD::isdb::MetainferenceBase::getCalcData ( const unsigned  index)
inlineprivate

◆ getCharge()

double PLMD::ActionAtomistic::getCharge ( int  i) const
inlineinherited

Get charge of i-th atom.

◆ getComponentsList()

std::string PLMD::ActionWithValue::getComponentsList ( ) const
inherited

get a string that contains all the available components

◆ getComponentsVector()

std::vector< std::string > PLMD::ActionWithValue::getComponentsVector ( ) const
inherited

get a vector that contains the label for all the components

◆ getCPT()

bool PLMD::Action::getCPT ( ) const
inherited

Return true if we are doing at a checkpoint step.

◆ getDependencies()

const Dependencies& PLMD::Action::getDependencies ( ) const
inlineinherited

Return dependencies.

◆ getDocumentation()

std::string PLMD::Action::getDocumentation ( ) const
virtualinherited

◆ getDoScore()

bool PLMD::isdb::MetainferenceBase::getDoScore ( )
inline

◆ getEnergy()

const double & PLMD::ActionAtomistic::getEnergy ( ) const
inlineinherited

Get energy.

◆ getEnergyForceGJ()

double PLMD::isdb::MetainferenceBase::getEnergyForceGJ ( const std::vector< double > &  mean,
const std::vector< double > &  dmean_x,
const std::vector< double > &  dmean_b
)
private

◆ getEnergyForceGJE()

double PLMD::isdb::MetainferenceBase::getEnergyForceGJE ( const std::vector< double > &  mean,
const std::vector< double > &  dmean_x,
const std::vector< double > &  dmean_b
)
private

◆ getEnergyForceMIGEN()

double PLMD::isdb::MetainferenceBase::getEnergyForceMIGEN ( const std::vector< double > &  mean,
const std::vector< double > &  dmean_x,
const std::vector< double > &  dmean_b
)
private

◆ getEnergyForceSP()

double PLMD::isdb::MetainferenceBase::getEnergyForceSP ( const std::vector< double > &  mean,
const std::vector< double > &  dmean_x,
const std::vector< double > &  dmean_b
)
private

◆ getEnergyForceSPE()

double PLMD::isdb::MetainferenceBase::getEnergyForceSPE ( const std::vector< double > &  mean,
const std::vector< double > &  dmean_x,
const std::vector< double > &  dmean_b
)
private

◆ getEnergyGJ()

double PLMD::isdb::MetainferenceBase::getEnergyGJ ( const std::vector< double > &  mean,
const std::vector< double > &  sigma,
const double  scale,
const double  offset
)
private

◆ getEnergyGJE()

double PLMD::isdb::MetainferenceBase::getEnergyGJE ( const std::vector< double > &  mean,
const std::vector< double > &  sigma,
const double  scale,
const double  offset
)
private

◆ getEnergyMIGEN()

double PLMD::isdb::MetainferenceBase::getEnergyMIGEN ( const std::vector< double > &  mean,
const std::vector< double > &  ftilde,
const std::vector< double > &  sigma,
const double  scale,
const double  offset
)
private

◆ getEnergySP()

double PLMD::isdb::MetainferenceBase::getEnergySP ( const std::vector< double > &  mean,
const std::vector< double > &  sigma,
const double  scale,
const double  offset
)
private

◆ getEnergySPE()

double PLMD::isdb::MetainferenceBase::getEnergySPE ( const std::vector< double > &  mean,
const std::vector< double > &  sigma,
const double  scale,
const double  offset
)
private

◆ getExchangeStep()

bool PLMD::Action::getExchangeStep ( ) const
inherited

Check if we are on an exchange step.

◆ getKeyword()

std::string PLMD::Action::getKeyword ( const std::string &  key)
inherited

Just read one of the keywords and return the whole thing as a string.

◆ getLabel()

const std::string & PLMD::Action::getLabel ( ) const
inlineinherited

Returns the label.

◆ getMass()

double PLMD::ActionAtomistic::getMass ( int  i) const
inlineinherited

Get mass of i-th atom.

◆ getMetaDer()

double PLMD::isdb::MetainferenceBase::getMetaDer ( const unsigned  index)
inline

◆ getName()

const std::string & PLMD::Action::getName ( ) const
inlineinherited

Returns the name.

◆ getNarg()

unsigned PLMD::isdb::MetainferenceBase::getNarg ( )
inline

◆ getNumberOfArguments()

unsigned PLMD::ActionWithArguments::getNumberOfArguments ( ) const
inlinevirtualinherited

Returns the number of arguments.

Reimplemented in PLMD::vesselbase::ActionWithAveraging.

◆ getNumberOfAtoms()

unsigned PLMD::ActionAtomistic::getNumberOfAtoms ( ) const
inlineinherited

Get number of available atoms.

◆ getNumberOfComponents()

int PLMD::ActionWithValue::getNumberOfComponents ( ) const
inlineinherited

Returns the number of values defined.

◆ getNumberOfDerivatives()

unsigned PLMD::isdb::MetainferenceBase::getNumberOfDerivatives ( )
inlinevirtual

Implements PLMD::ActionWithValue.

◆ getOutputQuantity() [1/2]

double PLMD::ActionWithValue::getOutputQuantity ( const unsigned  j) const
inlineinherited

Get the value of one of the components of the PLMD::Action.

◆ getOutputQuantity() [2/2]

double PLMD::ActionWithValue::getOutputQuantity ( const std::string &  name) const
inlineinherited

Get the value with a specific name (N.B. if there is no such value this returns zero)

◆ getPbc()

const Pbc & PLMD::ActionAtomistic::getPbc ( ) const
inlineinherited

Get reference to Pbc.

◆ getPntrToArgument()

Value * PLMD::ActionWithArguments::getPntrToArgument ( const unsigned  n)
inlineinherited

Return a pointer to specific argument.

◆ getPntrToComponent() [1/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( int  i)
protectedinherited

Return a pointer to the component by index.

◆ getPntrToComponent() [2/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( const std::string &  name)
protectedinherited

Return a pointer to the value by name.

◆ getPntrToValue()

Value * PLMD::ActionWithValue::getPntrToValue ( )
protectedinherited

Get a pointer to the default value.

◆ getPosition() [1/2]

const Vector & PLMD::ActionAtomistic::getPosition ( int  i) const
inlineinherited

Get position of i-th atom (access by relative index)

◆ getPosition() [2/2]

const Vector & PLMD::ActionAtomistic::getPosition ( AtomNumber  i) const
inlineinherited

Get position of i-th atom (access by absolute AtomNumber).

With direct access to the global atom array

◆ getPositions()

const std::vector< Vector > & PLMD::ActionAtomistic::getPositions ( ) const
inlineinherited

Get the array of all positions.

◆ getProjection()

double PLMD::ActionWithArguments::getProjection ( unsigned  i,
unsigned  j
) const
inherited

Get the scalar product between the gradients of two variables.

◆ getRestart()

bool PLMD::Action::getRestart ( ) const
inlineinherited

Return true if we are doing a restart.

◆ getScore()

double PLMD::isdb::MetainferenceBase::getScore ( )

◆ getStep()

long int PLMD::Action::getStep ( ) const
inherited

Return the present timestep.

◆ getTime()

double PLMD::Action::getTime ( ) const
inherited

Return the present time.

◆ getTimeStep()

double PLMD::Action::getTimeStep ( ) const
inherited

Return the timestep.

◆ getTotAtoms()

unsigned PLMD::ActionAtomistic::getTotAtoms ( ) const
inlineinherited

Get total number of atoms, including virtual ones.

Can be used to make a loop on modifyPosition or getPosition(AtomNumber)

◆ getUnique()

const std::set< AtomNumber > & PLMD::ActionAtomistic::getUnique ( ) const
inlineinherited

◆ getUniqueLocal()

const std::set< AtomNumber > & PLMD::ActionAtomistic::getUniqueLocal ( ) const
inlineinherited

◆ getWstride()

unsigned PLMD::isdb::MetainferenceBase::getWstride ( )
inline

◆ Initialise()

void PLMD::isdb::MetainferenceBase::Initialise ( const unsigned  input)

◆ interpretArgumentList()

void PLMD::ActionWithArguments::interpretArgumentList ( const std::vector< std::string > &  c,
std::vector< Value *> &  arg
)
inherited

Convert a list of argument names into a list of pointers to the values.

◆ interpretAtomList()

void PLMD::ActionAtomistic::interpretAtomList ( std::vector< std::string > &  strings,
std::vector< AtomNumber > &  t
)
inherited

Convert a set of read in strings into an atom list (this is used in parseAtomList)

◆ isActive()

bool PLMD::Action::isActive ( ) const
inlineinherited

Check if action is active.

◆ isOptionOn()

bool PLMD::Action::isOptionOn ( const std::string &  s) const
inlineinherited

Check if an option is on.

◆ lockRequests()

void PLMD::isdb::MetainferenceBase::lockRequests ( )
inlinevirtual

Reimplemented from PLMD::ActionAtomistic.

◆ makeWhole()

void PLMD::ActionAtomistic::makeWhole ( )
inherited

Make atoms whole, assuming they are in the proper order.

◆ modifyForceOnEnergy()

double & PLMD::ActionAtomistic::modifyForceOnEnergy ( )
inlineinherited

Get a reference to force on energy.

◆ modifyForces()

std::vector< Vector > & PLMD::ActionAtomistic::modifyForces ( )
inlineinherited

Get a reference to forces array.

◆ modifyGlobalForce()

Vector & PLMD::ActionAtomistic::modifyGlobalForce ( AtomNumber  i)
inlineinherited

Get modifiable force of i-th atom (access by absolute AtomNumber).

Warning
Should be used by action that need to modify the stored atomic forces. This should be used with great care since the plumed core does not usually keep all these forces up to date. In particular, if an action require this, one should during constructor call allowToAccessGlobalForces(). Notice that for efficiency reason plumed does not check if this is done!

◆ modifyGlobalPbc()

Pbc & PLMD::ActionAtomistic::modifyGlobalPbc ( )
inlineinherited

Get modifiable PBC Should be used by action that need to modify the stored box.

◆ modifyGlobalVirial()

Tensor & PLMD::ActionAtomistic::modifyGlobalVirial ( )
inlineinherited

Get modifiable virial Should be used by action that need to modify the stored virial.

◆ modifyPosition()

Vector & PLMD::ActionAtomistic::modifyPosition ( AtomNumber  i)
inlineinherited

Get modifiable position of i-th atom (access by absolute AtomNumber).

Should be used by action that need to modify the stored atomic coordinates

◆ modifyVirial()

Tensor & PLMD::ActionAtomistic::modifyVirial ( )
inlineinherited

Get a reference to virial array.

◆ noAnalyticalDerivatives()

void PLMD::ActionWithValue::noAnalyticalDerivatives ( Keywords keys)
staticinherited

Insist that numerical derivatives should always be used for an action and make this fact appear in the manual.

◆ parse()

template<class T >
void PLMD::Action::parse ( const std::string &  key,
T &  t
)
inherited

Parse one keyword as generic type.

◆ parseArgumentList() [1/2]

void PLMD::ActionWithArguments::parseArgumentList ( const std::string &  key,
std::vector< Value *> &  args
)
inherited

Parse a list of arguments.

◆ parseArgumentList() [2/2]

bool PLMD::ActionWithArguments::parseArgumentList ( const std::string &  key,
int  i,
std::vector< Value *> &  args
)
inherited

Parse a numbered list of arguments.

◆ parseAtomList() [1/2]

void PLMD::ActionAtomistic::parseAtomList ( const std::string &  key,
std::vector< AtomNumber > &  t
)
inherited

Parse a list of atoms without a numbered keyword.

◆ parseAtomList() [2/2]

void PLMD::ActionAtomistic::parseAtomList ( const std::string &  key,
const int  num,
std::vector< AtomNumber > &  t
)
inherited

Parse an list of atom with a numbred keyword.

◆ parseFlag()

void PLMD::Action::parseFlag ( const std::string &  key,
bool &  t
)
inherited

Parse one keyword as boolean flag.

◆ parseNumbered()

template<class T >
bool PLMD::Action::parseNumbered ( const std::string &  key,
const int  no,
T &  t
)
inherited

Parse one numbered keyword as generic type.

◆ parseNumberedVector()

template<class T >
bool PLMD::Action::parseNumberedVector ( const std::string &  key,
const int  no,
std::vector< T > &  t
)
inherited

Parse a vector with a number.

◆ parseVector()

template<class T >
void PLMD::Action::parseVector ( const std::string &  key,
std::vector< T > &  t
)
inherited

Parse one keyword as std::vector.

◆ pbcApply()

void PLMD::ActionAtomistic::pbcApply ( std::vector< Vector > &  dlist,
unsigned  max_index = 0
) const
inherited

Applies PBCs to a seriens of positions or distances.

◆ pbcDistance()

Vector PLMD::ActionAtomistic::pbcDistance ( const Vector v1,
const Vector v2
) const
inherited

Compute the pbc distance between two positions.

◆ prepare()

void PLMD::Action::prepare ( )
virtualinherited

Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation.

Typical case is for collective variables which would like to change their list of requested atoms. By default (if not overridden) does nothing.

Reimplemented in PLMD::isdb::EMMI, PLMD::multicolvar::MultiColvarBase, PLMD::function::FuncPathMSD, PLMD::generic::DumpMassCharge, PLMD::generic::UpdateIf, PLMD::generic::Print, PLMD::generic::Read, PLMD::bias::ReweightTemperature, PLMD::gridtools::ConvertToFES, PLMD::colvar::Energy, and PLMD::colvar::CoordinationBase.

◆ readAtomsFromPDB()

void PLMD::ActionAtomistic::readAtomsFromPDB ( const PDB pdb)
virtualinherited

Read in an input file containing atom positions and calculate the action for the atomic configuration therin.

Reimplemented from PLMD::Action.

◆ registerKeywords()

void PLMD::isdb::MetainferenceBase::registerKeywords ( Keywords keys)
static

◆ replica_averaging()

void PLMD::isdb::MetainferenceBase::replica_averaging ( const double  fact,
std::vector< double > &  mean,
std::vector< double > &  dmean_b
)
private

◆ requestArguments()

void PLMD::ActionWithArguments::requestArguments ( const std::vector< Value *> &  arg)
inherited

Setup the dependencies.

◆ requestAtoms()

void PLMD::ActionAtomistic::requestAtoms ( const std::vector< AtomNumber > &  a)
inherited

Request an array of atoms.

This method is used to ask for a list of atoms. Atoms should be asked for by number. If this routine is called during the simulation, atoms will be available at the next step MAYBE WE HAVE TO FIND SOMETHING MORE CLEAR FOR DYNAMIC LISTS OF ATOMS

◆ retrieveAtoms()

void PLMD::ActionAtomistic::retrieveAtoms ( )
virtualinherited

◆ runFinalJobs()

virtual void PLMD::Action::runFinalJobs ( )
inlinevirtualinherited

RunFinalJobs This method is called once at the very end of the calculation.

The set of all Actions in run for the final time in forward order.

Reimplemented in PLMD::analysis::Analysis, PLMD::gridtools::ConvertToFES, and PLMD::gridtools::GridPrintingBase.

◆ Selector()

void PLMD::isdb::MetainferenceBase::Selector ( )

◆ setArgDerivatives()

void PLMD::isdb::MetainferenceBase::setArgDerivatives ( Value v,
const double &  d
)
inline

◆ setAtomsDerivatives()

void PLMD::isdb::MetainferenceBase::setAtomsDerivatives ( Value v,
const unsigned  i,
const Vector d
)
inline

◆ setBoxDerivatives()

void PLMD::isdb::MetainferenceBase::setBoxDerivatives ( Value v,
const Tensor d
)
inline

◆ setCalcData() [1/2]

void PLMD::isdb::MetainferenceBase::setCalcData ( const unsigned  index,
const double  datum
)
inline

◆ setCalcData() [2/2]

void PLMD::isdb::MetainferenceBase::setCalcData ( const std::vector< double > &  data)
inline

◆ setDerivatives()

void PLMD::isdb::MetainferenceBase::setDerivatives ( )
inline

◆ setForcesOnAtoms()

void PLMD::ActionAtomistic::setForcesOnAtoms ( const std::vector< double > &  forcesToApply,
unsigned  ind = 0
)
inherited

Add the forces to the atoms.

◆ setGradientsIfNeeded()

void PLMD::ActionWithValue::setGradientsIfNeeded ( )
inherited

Calculate the gradients and store them for all the values (need for projections)

◆ setMetaDer()

void PLMD::isdb::MetainferenceBase::setMetaDer ( const unsigned  index,
const double  der
)
inlineprivate

◆ setNarg()

void PLMD::isdb::MetainferenceBase::setNarg ( const unsigned  input)
inline

◆ setNotPeriodic()

void PLMD::ActionWithValue::setNotPeriodic ( )
inherited

Set your default value to have no periodicity.

◆ setOption()

void PLMD::Action::setOption ( const std::string &  s)
virtualinherited

◆ setParameter()

void PLMD::isdb::MetainferenceBase::setParameter ( const double  input)
inline

◆ setParameters()

void PLMD::isdb::MetainferenceBase::setParameters ( const std::vector< double > &  input)
inline

◆ setPeriodic()

void PLMD::ActionWithValue::setPeriodic ( const std::string &  min,
const std::string &  max
)
inherited

Set the value to be periodic with a particular domain.

◆ setScore()

void PLMD::isdb::MetainferenceBase::setScore ( const double  score)
inline

◆ setValue() [1/2]

void PLMD::ActionWithValue::setValue ( const double &  d)
inlineprotectedinherited

Set the default value (the one without name)

◆ setValue() [2/2]

void PLMD::ActionWithValue::setValue ( Value ,
double
)
inherited

Set the value.

◆ turnOnDerivatives()

void PLMD::isdb::MetainferenceBase::turnOnDerivatives ( )
inlinevirtual

Activate the calculation of derivatives.

Reimplemented from PLMD::ActionWithValue.

◆ unlockRequests()

void PLMD::isdb::MetainferenceBase::unlockRequests ( )
inlinevirtual

Reimplemented from PLMD::ActionAtomistic.

◆ update()

virtual void PLMD::Action::update ( )
inlinevirtualinherited

◆ updateUniqueLocal()

void PLMD::ActionAtomistic::updateUniqueLocal ( )
inherited

updates local unique atoms

◆ useCustomisableComponents()

void PLMD::ActionWithValue::useCustomisableComponents ( Keywords keys)
staticinherited

The components in the action will depend on the user.

◆ useNumericalDerivatives()

void PLMD::ActionWithValue::useNumericalDerivatives ( )
inlineinherited

This forces the class to use numerical derivatives.

◆ warning()

void PLMD::Action::warning ( const std::string &  msg)
inherited

Issue a warning.

◆ writeStatus()

void PLMD::isdb::MetainferenceBase::writeStatus ( )

Member Data Documentation

◆ atoms

Atoms& PLMD::ActionAtomistic::atoms
protectedinherited

◆ average_weights_

std::vector< std::vector <double> > PLMD::isdb::MetainferenceBase::average_weights_
private

◆ calc_data_

std::vector<double> PLMD::isdb::MetainferenceBase::calc_data_
private

◆ comm

Communicator& PLMD::Action::comm
inherited

◆ decay_w_

double PLMD::isdb::MetainferenceBase::decay_w_
private

◆ Dftilde_

double PLMD::isdb::MetainferenceBase::Dftilde_
private

◆ do_optsigmamean_

unsigned PLMD::isdb::MetainferenceBase::do_optsigmamean_
private

◆ do_reweight_

bool PLMD::isdb::MetainferenceBase::do_reweight_
private

◆ Doffset_

double PLMD::isdb::MetainferenceBase::Doffset_
private

◆ dooffset_

bool PLMD::isdb::MetainferenceBase::dooffset_
private

◆ doscale_

bool PLMD::isdb::MetainferenceBase::doscale_
private

◆ doscore_

bool PLMD::isdb::MetainferenceBase::doscore_
private

◆ Dscale_

double PLMD::isdb::MetainferenceBase::Dscale_
private

◆ Dsigma_

std::vector<double> PLMD::isdb::MetainferenceBase::Dsigma_
private

◆ files

std::set<FILE*> PLMD::Action::files
inherited

◆ firstTime

bool PLMD::isdb::MetainferenceBase::firstTime
private

◆ firstTimeW

std::vector<bool> PLMD::isdb::MetainferenceBase::firstTimeW
private

◆ forces

std::vector<double> PLMD::isdb::MetainferenceBase::forces
private

◆ forcesToApply

std::vector<double> PLMD::isdb::MetainferenceBase::forcesToApply
private

◆ ftilde_

std::vector<double> PLMD::isdb::MetainferenceBase::ftilde_
private

◆ gen_likelihood_

unsigned PLMD::isdb::MetainferenceBase::gen_likelihood_
private

◆ iselect

unsigned PLMD::isdb::MetainferenceBase::iselect
private

◆ kbt_

double PLMD::isdb::MetainferenceBase::kbt_
private

◆ keywords

const Keywords& PLMD::Action::keywords
inherited

◆ log

Log& PLMD::Action::log
inherited

Reference to the log stream.

◆ master

bool PLMD::isdb::MetainferenceBase::master
private

◆ MCaccept_

long unsigned PLMD::isdb::MetainferenceBase::MCaccept_
private

◆ MCacceptFT_

long unsigned PLMD::isdb::MetainferenceBase::MCacceptFT_
private

◆ MCacceptScale_

long unsigned PLMD::isdb::MetainferenceBase::MCacceptScale_
private

◆ MCchunksize_

unsigned PLMD::isdb::MetainferenceBase::MCchunksize_
private

◆ MCsteps_

unsigned PLMD::isdb::MetainferenceBase::MCsteps_
private

◆ MCstride_

unsigned PLMD::isdb::MetainferenceBase::MCstride_
private

◆ MCtrial_

long unsigned PLMD::isdb::MetainferenceBase::MCtrial_
private

◆ metader_

std::vector<double> PLMD::isdb::MetainferenceBase::metader_
private

◆ multi_sim_comm

Communicator& PLMD::Action::multi_sim_comm
inherited

◆ narg

unsigned PLMD::isdb::MetainferenceBase::narg
private

◆ noise_type_

unsigned PLMD::isdb::MetainferenceBase::noise_type_
private

◆ nrep_

unsigned PLMD::isdb::MetainferenceBase::nrep_
private

◆ nsel_

unsigned PLMD::isdb::MetainferenceBase::nsel_
private

◆ offset_

double PLMD::isdb::MetainferenceBase::offset_
private

◆ offset_max_

double PLMD::isdb::MetainferenceBase::offset_max_
private

◆ offset_min_

double PLMD::isdb::MetainferenceBase::offset_min_
private

◆ offset_mu_

double PLMD::isdb::MetainferenceBase::offset_mu_
private

◆ offset_prior_

unsigned PLMD::isdb::MetainferenceBase::offset_prior_
private

◆ optsigmamean_stride_

unsigned PLMD::isdb::MetainferenceBase::optsigmamean_stride_
private

◆ parameters

std::vector<double> PLMD::isdb::MetainferenceBase::parameters
private

◆ plumed

PlumedMain& PLMD::Action::plumed
inherited

Reference to main plumed object.

◆ random

std::vector<Random> PLMD::isdb::MetainferenceBase::random
private

◆ replica_

unsigned PLMD::isdb::MetainferenceBase::replica_
private

◆ scale_

double PLMD::isdb::MetainferenceBase::scale_
private

◆ scale_max_

double PLMD::isdb::MetainferenceBase::scale_max_
private

◆ scale_min_

double PLMD::isdb::MetainferenceBase::scale_min_
private

◆ scale_mu_

double PLMD::isdb::MetainferenceBase::scale_mu_
private

◆ scale_prior_

unsigned PLMD::isdb::MetainferenceBase::scale_prior_
private

◆ selector_

std::string PLMD::isdb::MetainferenceBase::selector_
private

◆ sfile_

OFile PLMD::isdb::MetainferenceBase::sfile_
private

◆ sigma_

std::vector<double> PLMD::isdb::MetainferenceBase::sigma_
private

◆ sigma_max_

std::vector<double> PLMD::isdb::MetainferenceBase::sigma_max_
private

◆ sigma_mean2_

std::vector<double> PLMD::isdb::MetainferenceBase::sigma_mean2_
private

◆ sigma_mean2_last_

std::vector< std::vector < std::vector <double> > > PLMD::isdb::MetainferenceBase::sigma_mean2_last_
private

◆ sigma_min_

std::vector<double> PLMD::isdb::MetainferenceBase::sigma_min_
private

◆ status_file_name_

std::string PLMD::isdb::MetainferenceBase::status_file_name_
private

◆ valueAccept

Value* PLMD::isdb::MetainferenceBase::valueAccept
private

◆ valueAcceptFT

Value* PLMD::isdb::MetainferenceBase::valueAcceptFT
private

◆ valueAcceptScale

Value* PLMD::isdb::MetainferenceBase::valueAcceptScale
private

◆ valueFtilde

std::vector<Value*> PLMD::isdb::MetainferenceBase::valueFtilde
private

◆ valueOffset

Value* PLMD::isdb::MetainferenceBase::valueOffset
private

◆ valueScale

Value* PLMD::isdb::MetainferenceBase::valueScale
private

◆ valueScore

Value* PLMD::isdb::MetainferenceBase::valueScore
private

◆ valueSigma

std::vector<Value*> PLMD::isdb::MetainferenceBase::valueSigma
private

◆ valueSigmaMean

std::vector<Value*> PLMD::isdb::MetainferenceBase::valueSigmaMean
private

◆ write_stride_

unsigned PLMD::isdb::MetainferenceBase::write_stride_
private

The documentation for this class was generated from the following files:
